Tires
●Solid tires · Standard
○Pneumatic tires · Optional
○Eco tires · Optional
English

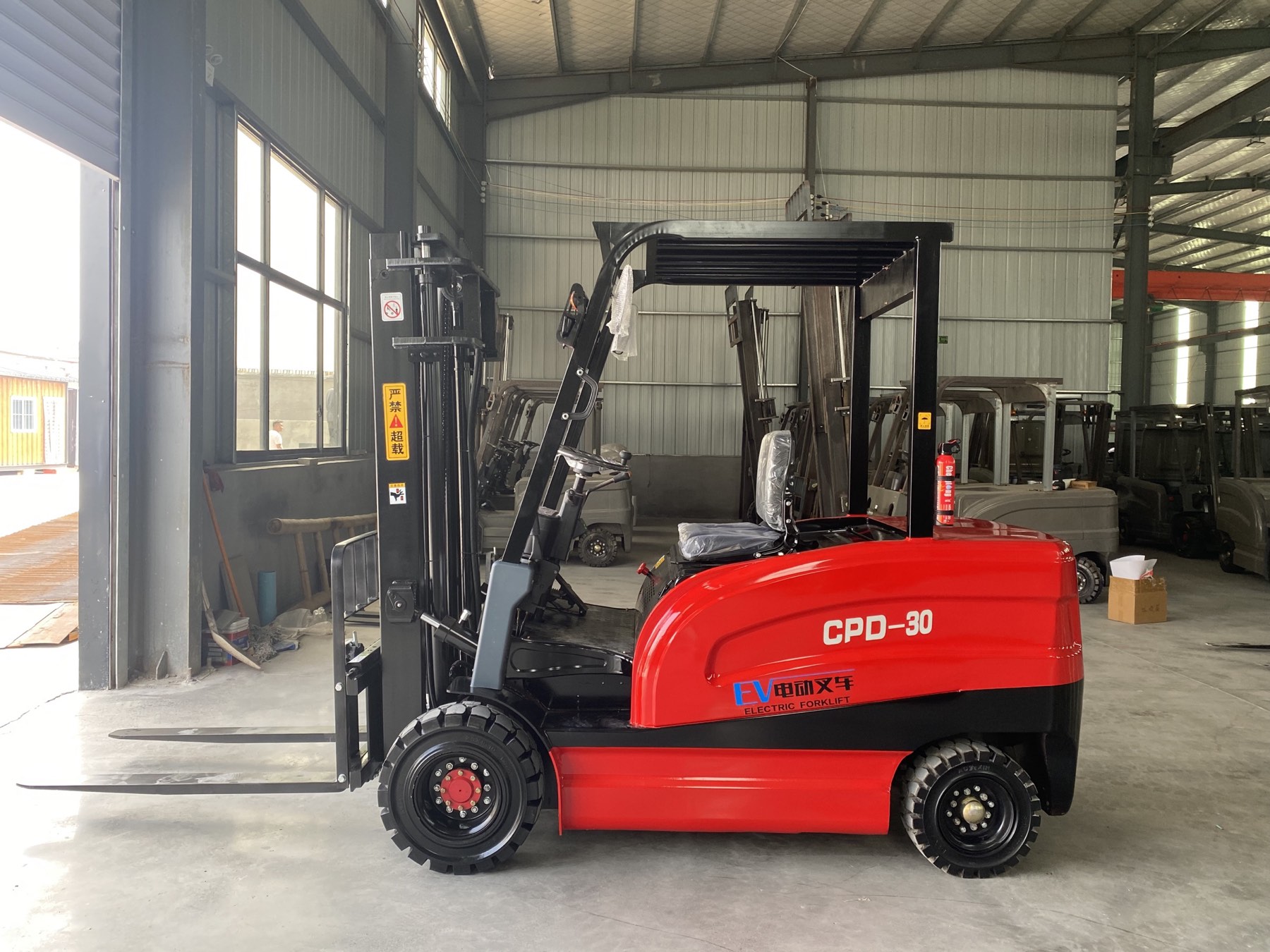

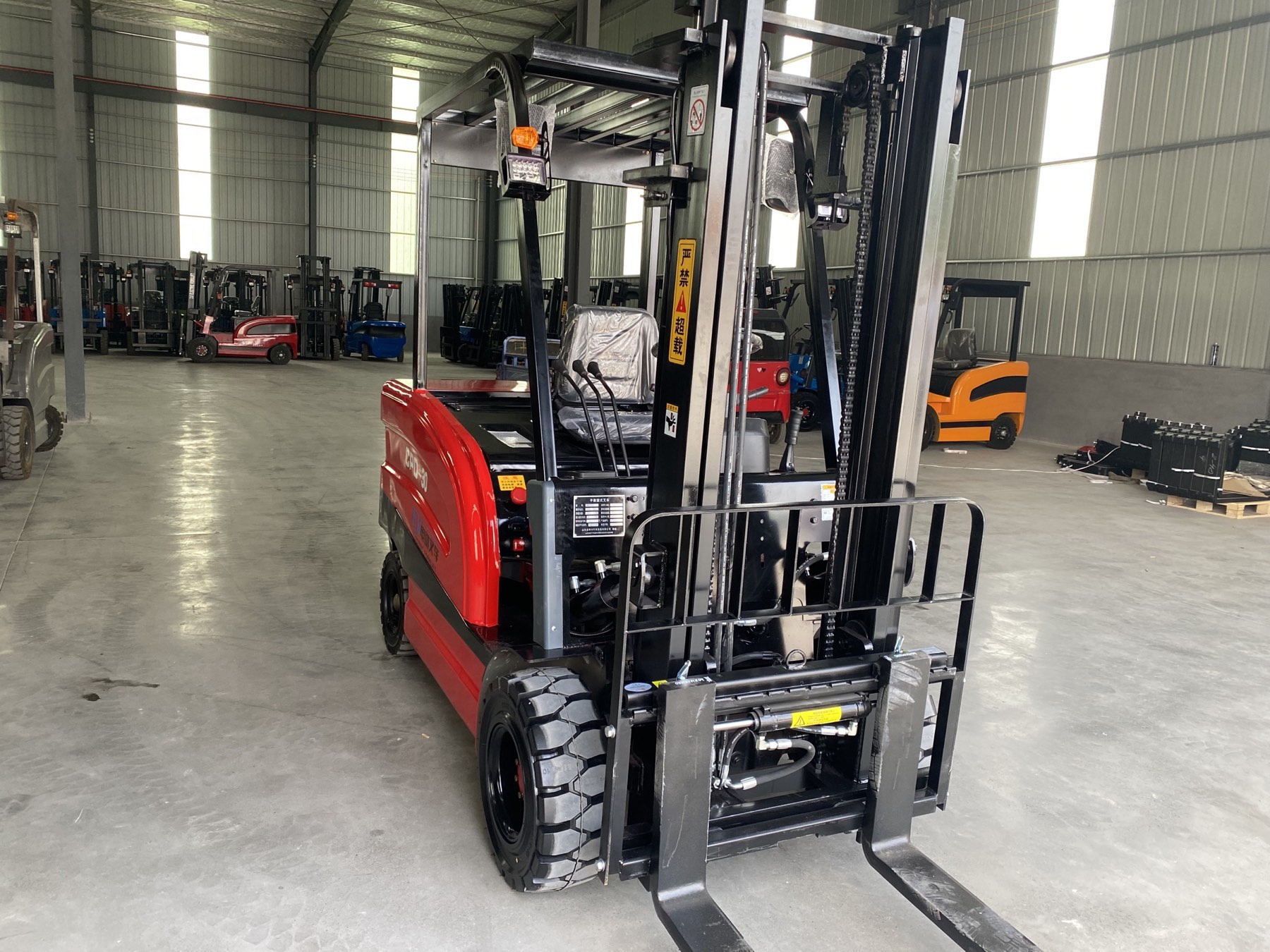

STUDIO VIEW · CPD-30
LITHIUM ELECTRIC FORKLIFT
CPD-30
3.0 Ton Lithium Electric Forklift
Factory-direct electric forklift configurable for distributor and industrial buyer requirements.
- RATED CAPACITY
- 3,000 kg
- STANDARD LIFT
- 3,000 mm
- BATTERY
- 80V / 210Ah
- TURNING RADIUS
- 2,250 mm
✓ Technical confirmation before production✓ Type-test report available✓ OEM configuration support
BUILT FOR DAILY OPERATION
LITHIUM POWER.
PRACTICAL CONTROL.
Quiet operation, zero local emissions and fewer routine service items make the platform suitable for indoor material flow.
STANDARD & OPTIONAL EQUIPMENT
CONFIGURE CPD-30 FOR THE JOB.
● Standard equipment ○ Optional equipment. Final availability is confirmed in the technical agreement.
Operator
●Luxury seat · Standard
●Standard overhead guard · Standard
Hydraulics
●2-spool control valve · Standard
○3-spool control valve · Optional
○4-spool control valve · Optional
Mast
●2-stage 3 m mast · Standard
○2-stage 3.5 / 4 / 4.5 / 5 m · Optional
○2-stage full free lift · Optional
○3-stage full free lift 4.5 / 5 / 5.5 / 6 m · Optional
Forks
●1,220 mm fork · Standard
○1,070 mm fork · Optional
○Without forks · Optional
○1,370 / 1,520 / 1,670 / 1,820 / 2,000 mm forks · Optional
Lighting
●Front/rear combination lights · Standard
●Rear work light · Standard
○Yellow warning beacon · Optional
○Three-sided blue safety light · Optional
Motor
●Dual 14 motor · Standard
○Dual 18 motor · Optional
Battery
●80V / 210Ah · Standard
○80V / 320Ah · Optional
○80V / 420Ah · Optional
○80V / 640Ah · Optional
Charger
●65A charger · Standard
○100A charger · Optional
○200A charger · Optional
Working environment
○Battery heating system · Optional
○Cold-storage package · Optional
Attachments
○External fork support · Optional
○Fork positioner · Optional
COMPLETE TECHNICAL DATA
CPD-30 PERFORMANCE SPECIFICATIONS
Values below are transcribed from the latest confirmed vehicle information sheet. Final configuration is governed by the signed agreement.
Characteristics
| Power type | Electric |
|---|---|
| Operator type | Seated |
| Rated capacity | 3,000 kg |
| Load center | 500 mm |
| Front overhang | 467 mm |
| Wheelbase | 1,650 mm |
Weight & Tires
| Service weight | 4,300 kg |
|---|---|
| Axle load, laden (front/rear) | 6,600 / 700 kg |
| Axle load, unladen (front/rear) | 1,880 / 2,420 kg |
| Tire type | Solid (SE) |
| Front tires | 28×9-15 |
| Rear tires | 6.50-10 |
| Wheels, front/rear | 2× / 2 |
| Front track | 1,002 mm |
| Rear track | 982 mm |
Dimensions
| Mast tilt, forward/backward | 6° / 12° |
|---|---|
| Mast height, lowered | 2,065 mm |
| Free lift | 160 mm |
| Standard lift height | 3,000 mm |
| Maximum operating height | 4,255 mm |
| Overhead guard height | 2,115 mm |
| Seat height | 1,150 mm |
| Tow coupling height | 480 mm |
| Body length | 2,650 mm |
| Overall length, including forks | 3,720 mm |
| Overall width | 1,240 mm |
| Fork dimensions | 45×120×1,220 mm |
| Fork carriage class | DIN A |
| Fork carriage width | 1,100 mm |
| Ground clearance under mast, laden | 120 mm |
| Ground clearance at wheelbase, laden | 140 mm |
| Aisle width, pallet 1000×1200 crossways | 4,085 mm |
| Aisle width, pallet 800×1200 lengthways | 4,285 mm |
| Turning radius | 2,250 mm |
| Turning-center distance | 764 mm |
Performance
| Travel speed, laden/unladen | 12.5 / 14 km/h |
|---|---|
| Lift speed, laden/unladen | 300 / 380 mm/s |
| Lowering speed, laden/unladen | 420 / 390 mm/s |
| Gradeability, laden/unladen | 15% / 20% |
| Service brake | Hydraulic |
| Parking brake | Mechanical hand brake |
| Drawbar pull, 5 min | 12.5 kN |
Motor & Battery
| Drive motor, S2 60 min | 15.2 kW |
|---|---|
| Lift motor, S3 15% duty | 24.2 kW |
| Battery voltage / capacity | 80V / 210Ah |
| Attachment hydraulic pressure | 18 MPa |
